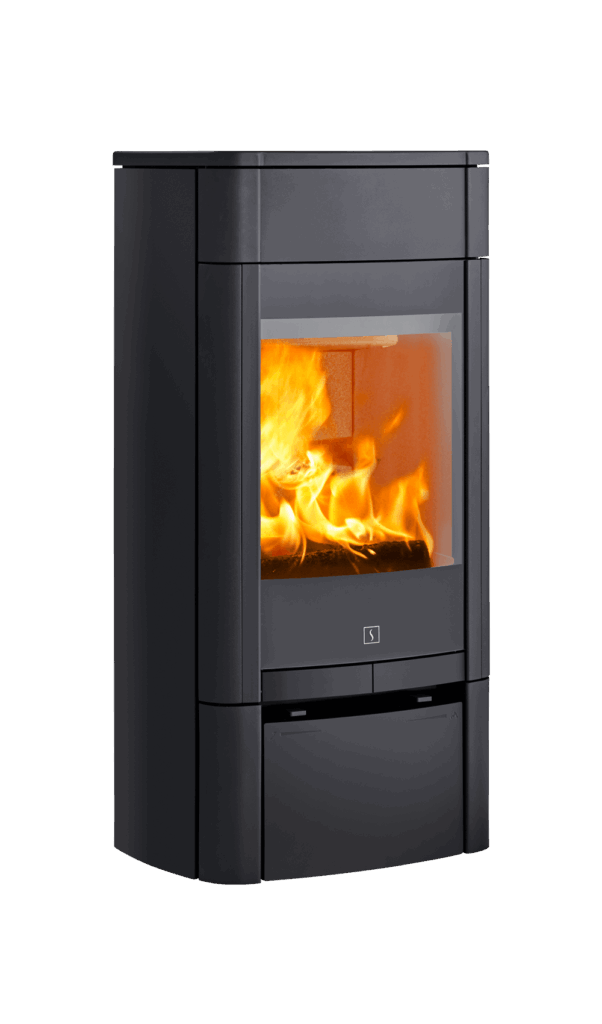

SCAN 65-1 LOW BASE
- Brukervennlig, mellomstor peisovn med rene linjer
- Plasseringsvennlig, 5 cm bak mot brennbart
- Soft-close dørsystem er standard
- Vekt (Kg)
- 118
- Høyde (mm)
- 1000
- Bredde (mm)
- 490
- Dybde (mm)
- 380
- Effekt (%)
- 82
- Min Output (kW)
- 3
- Nominel Output (kW)
- 6
- Maks utgangseffekt (kW)
- 8
- Varmekapasitet, opp til (m2)
- 120
- Kubbestr. opp til (mm)
- 30
- Utgangsmuligheter for røykrør
- Top, Rear
- Røykrørsuttak (mm)
- 148
- NOx Emission at 13% O2
- 117
- Dust Emission at 13% O2
- 20
- CO Emission at 13% O2
- 0.1
